Excellent battery efficiency

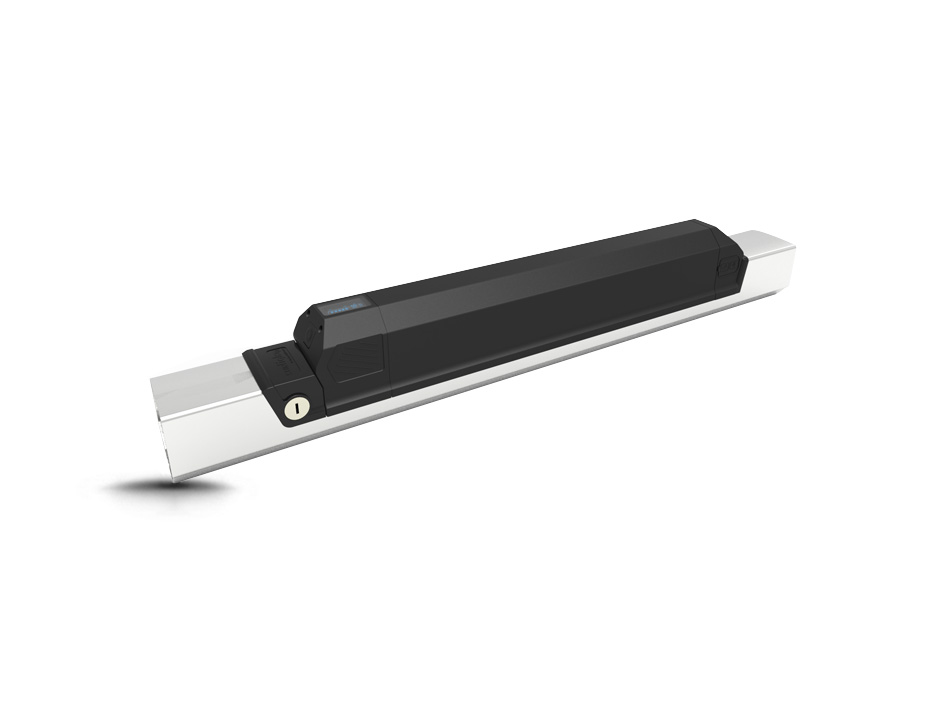

Kinstar Lithium-ion 36V 16Ah Sunlight II eBike tube battery provide staying power, demonstrably have maximum energy density with small size and low weight for maximum riding pleasure.
Modern design and easy handling
The Sunlight II tube eBike battery with a modern design which featured with a 4 levels LED indicator. It is easy to remove and charge the battery at home. It can also be conveniently charged directly on the eBike.
Fast charge and no memory effect
Kinstar Li-ion 36V 16Ah tube battery can be full charged in about 6 hours, faster than Ni-MH, Ni-Cd or Lead acid batteries. Durable energy storage without memory effect and with minimal self-discharge.
Long service life
The Battery Management System(BMS) offers maximum protection against overcharging, overdischarging, overcurrent, overheating and short circuits as well as extending the service life of the battery pack.
| Items | Specifications | Notes |
| Nominal capacity | 16Ah | 0.2C discharge at 25°C |
| Nominal voltage | 36V | Average operating voltage |
| Nominal energy | 576Wh | Capacity(Ah) × Voltage(V) |
| Charging voltage | 42 ± 0.05V | |
| Charging current | 2A 丨4A | Standard丨Rapid |
| Charging time | 9.0 hours 丨6.0 hours | Standard丨Rapid |
| Charging method | CC - CV | Constant current, constant voltage |
| Continuous discharge current | 5A 丨20A | Standard丨Maximum |
| Peak discharge current | 45A | Within a short time |
| Discharge end voltage | 27.5V | Discharge cut-off voltage |
| Dimensions | 508mm丨60mm丨61mm | Length丨Width丨Height |
| Typical weight | 3.70 KG | 130.50 oz |
| Charge temperature range | +10 ~ +45°C | +50 ~ 110°F |
| Discharge temperature range | -20 ~ +60°C | -4 ~ +140°F |
| Storage temperature | -20 ~ +45°C | Within 3 months |
