Excellent battery efficiency
KinStar eBike Battery Pack 48V 10Ah 480Wh SSE-006 TIANLONG III provide staying power, demonstrably have maximum energy density with small size and low weight for maximum riding pleasure.
Modern design and easy handling

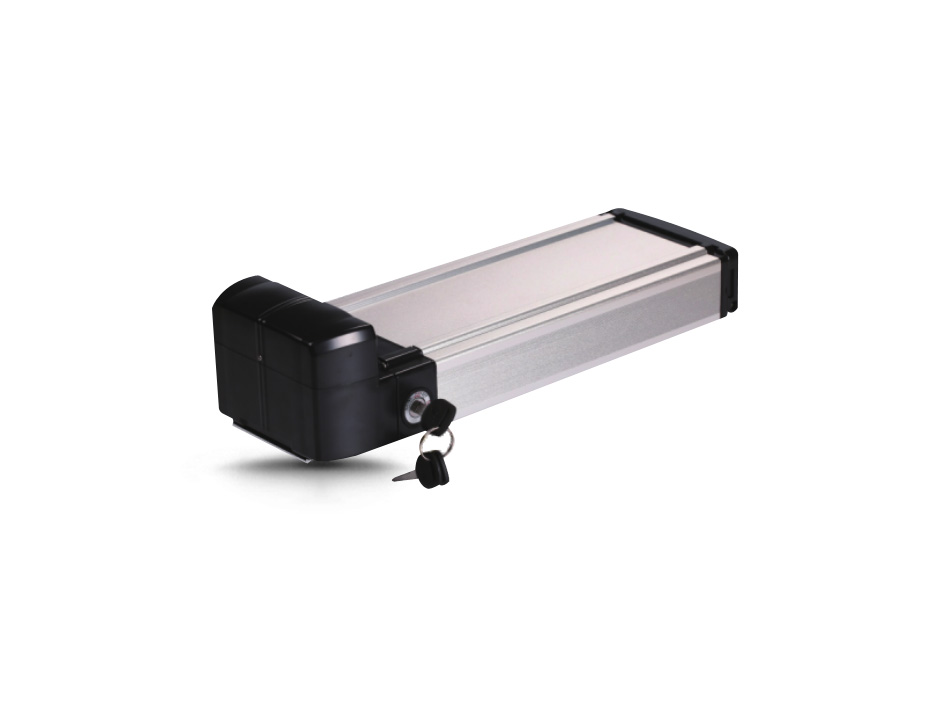

The eBike Battery Pack 48V 10Ah 480Wh SSE-006 TIANLONG III with a firmly aluminum shell to protect the battery in a safe condition. It is easy to remove and charge the battery separate.
Fast charge and no memory effect
KinStar eBike Battery Pack 48V 10Ah 480Wh SSE-006 TIANLONG III can be full charged in about 5.0 hours, durable energy storage without memory effect and extremely low self-discharge.
Long service life
The Battery Management System(BMS) offers maximum protection against overcharging, overdischarging, overcurrent, overheating and short circuits as well as extending the service life of the battery pack.
| Items | Specifications | Notes |
| Nominal capacity | 10Ah | Reference only |
| Nominal voltage | 46.8V | Average operating voltage |
| Nominal energy | 468Wh | Capacity(Ah) × Voltage(V) |
| Charging voltage | 54.60 ± 0.05V | |
| Charging current | 2A 丨3A | Standard丨Rapid |
| Charging time | 6.0 hours 丨5.0 hours | Standard丨Rapid |
| Charging method | CC - CV | Constant current, constant voltage |
| Continuous discharge current | 5A 丨10A | Standard丨Maximum |
| Peak discharge current | 45A | Within a short time |
| Discharge end voltage | 35.75V | Discharge cut-off voltage |
| Dimensions | 427mm丨150mm丨65mm | Length丨Width丨Height |
| Typical weight | 3.9 KG | 137.6 oz |
| Charge temperature range | +10 ~ +45°C | +50 ~ 110°F |
| Discharge temperature range | -20 ~ +60°C | -4 ~ +140°F |
| Storage temperature | -20 ~ +45°C | Within 3 months |
