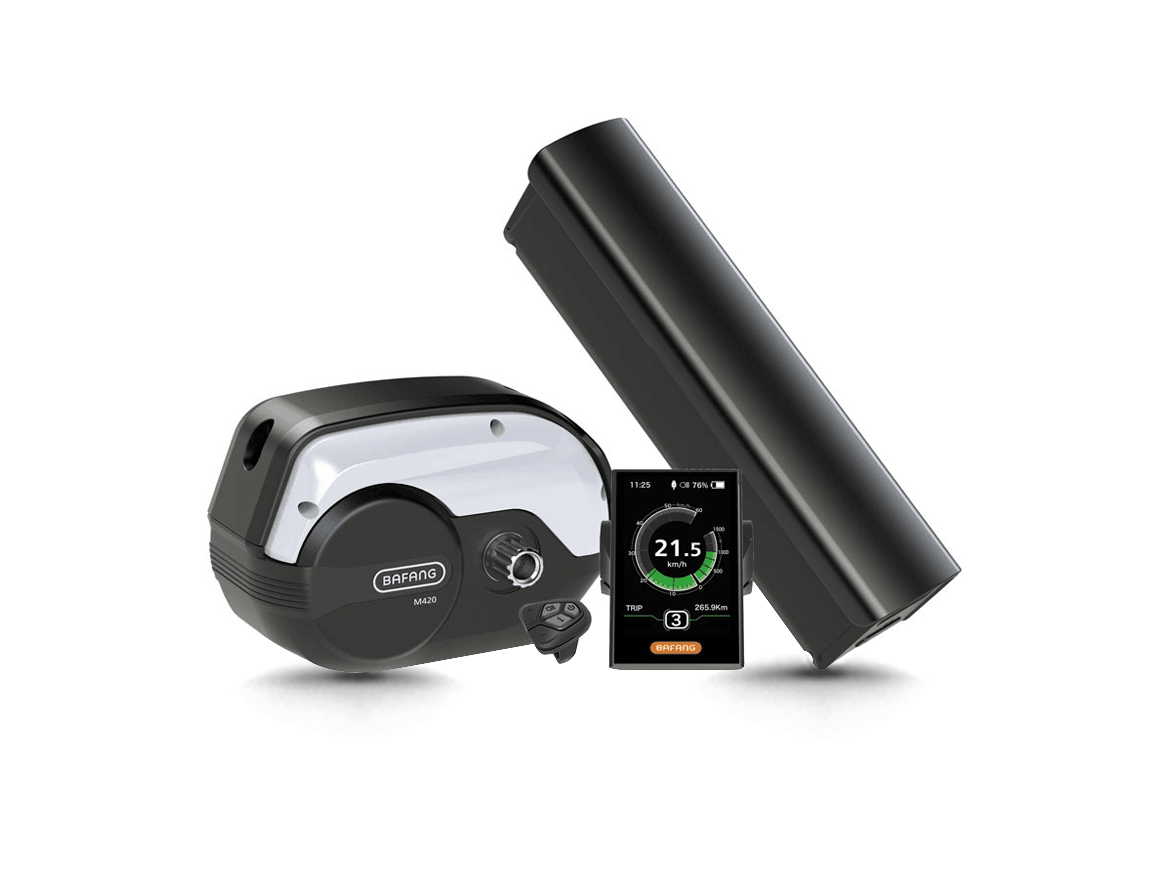

Bafang M420 Middle Motor Unit 36V 43V 48V 250W

Bafang M420 (MM G332.250.C/CCB), rated power 250W. Rated voltage DC 36/43/48V. Which can transform most bikes into a modern and efficient ebike with minimal hassle.

  • bafang m420 nm
Bafang M420 Middle Motor Unit 36V 43V 48V 250W MM G332.250.C/CCB

Bafang M420 Middle Motor Unit 36V 43V 48V 250W MM G332.250.C/CCB

  • Item No. M420
  • Product model MM G332.250.C/CCB
  • Rated power 250W
  • Rated voltage 36丨43丨48V
  • Max. torque 80 N.m
  • Certificates CE丨RoHS丨EN 14766
  • Applications E-City丨E-Tour
ItemsSpecificationsNotes
Rated power250
Watt
Rated voltage36丨43丨48Volt
Mounting positionMiddle/
Maximum torque80N.m
Rated speed25丨32KM/h
Wheel sizes20-29inch
Dimensions202×123×154.8
mm
Pedal sensorCadence & torque/
Shaft standardBafang/
ColorBlack/
E-brake
Optional/
Light drive capacity6/3 (Max)
Vdc/W
IP level
X5
/
Salt spray test96/
Weight3.6KG
