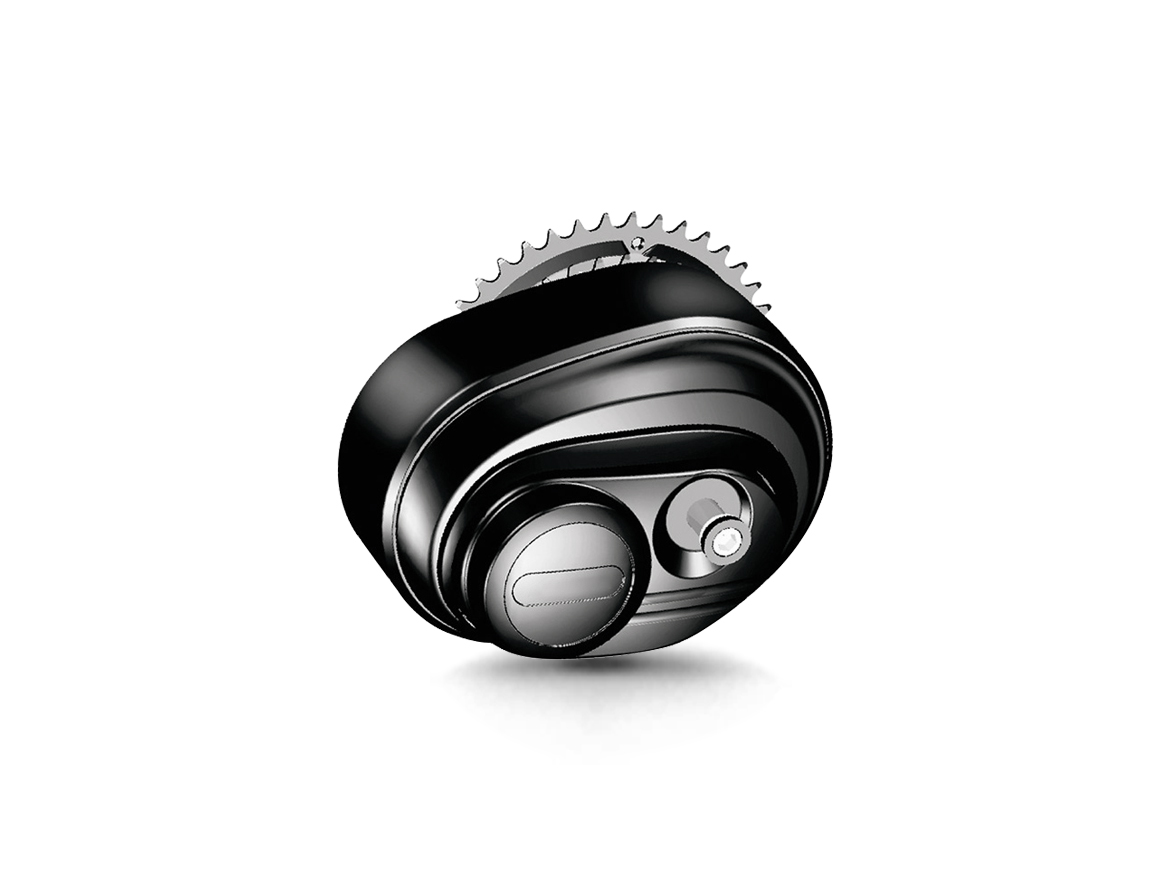

Tongsheng TSDZ3 Mid Drive 36V 48V 250W Kits

Model number TSDZ3, rated voltage DC 24/36/48V. Rated power 250W. It can transform most bikes into a modern and efficient ebike with minimal hassle.

  • tsdz3 250w
  • 250w 48v ebike kit
  • tongsheng mid-drive kit

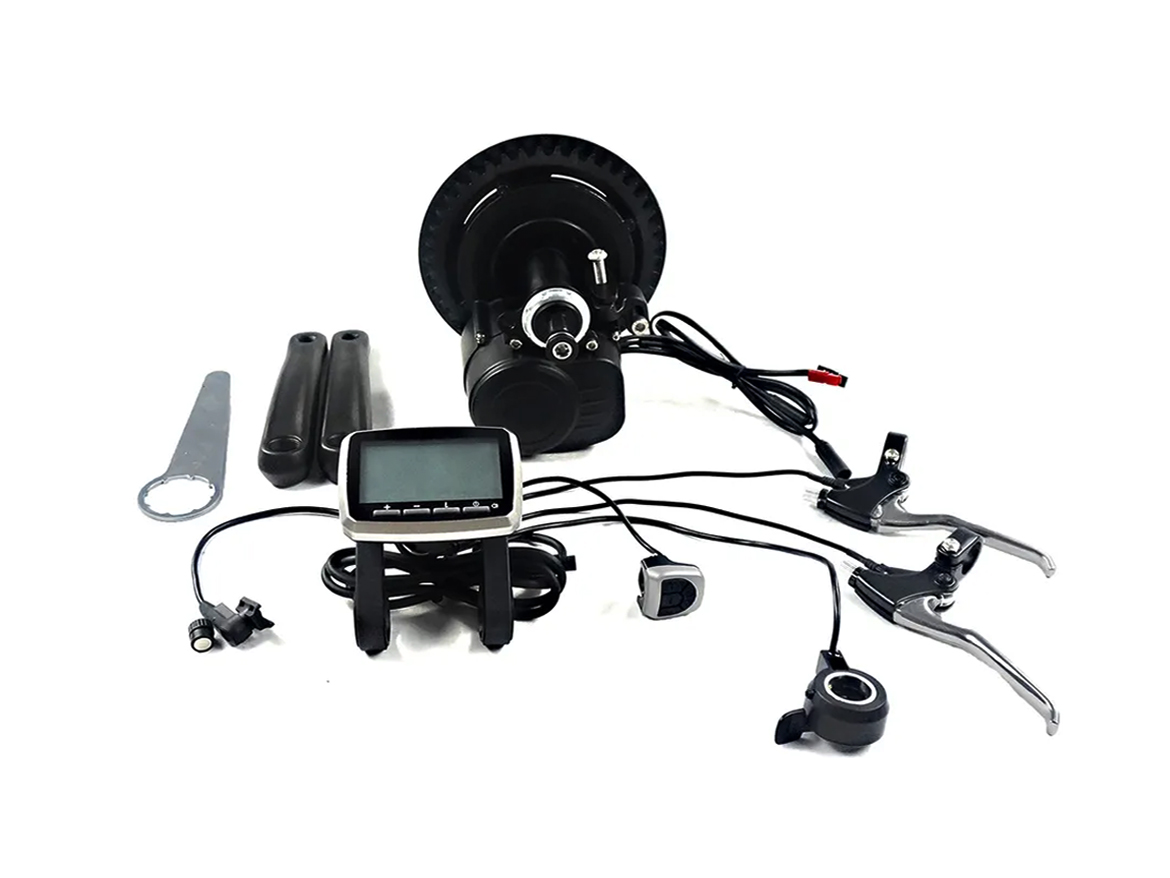

Tongsheng TSDZ3 Mid Drive 36V 48V 250W Electric Bike Conversion Kits

Tongsheng TSDZ3 Mid Drive 36V 48V 250W Electric Bike Conversion Kits

  • Item No.TSDZ3
  • Rated power 250W
  • Rated voltage 24丨36丨48V
  • Max. torque 80 N.m
  • Efficiency 80%
  • Certificates CE丨RoHS丨EN 15194
  • Applications E-City丨E-Tour
ItemsSpecificationsNotes
Rated power250
Watt
Rated voltage24丨36丨48Volt
Pedal sensorTorque integrated/
Shaft standardJIS /
Mounting positionMiddle/

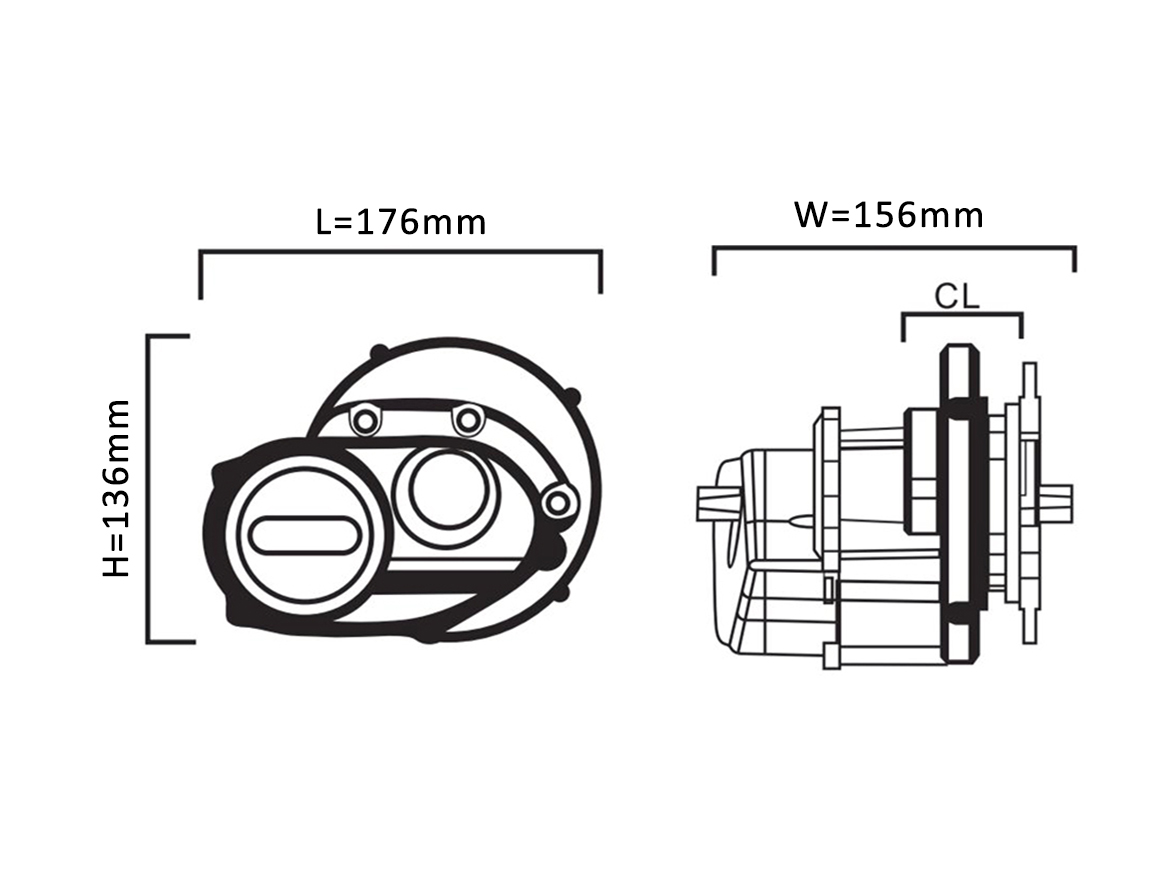

Motor dimensions176×156×136
mm
CL/B
49/0mm
Reduction ratio41/
Wheel sizeOptional/
Maximum torque80N.m
Non load speed100RPM
Power assist ratio36-300%/
Noise Grade<55dB
ThrottleOptional/
E-brake
Yes/
IP level
65
/
Salt spray test96/
DisplayVLCD5
Optional
Weight5.5KG
