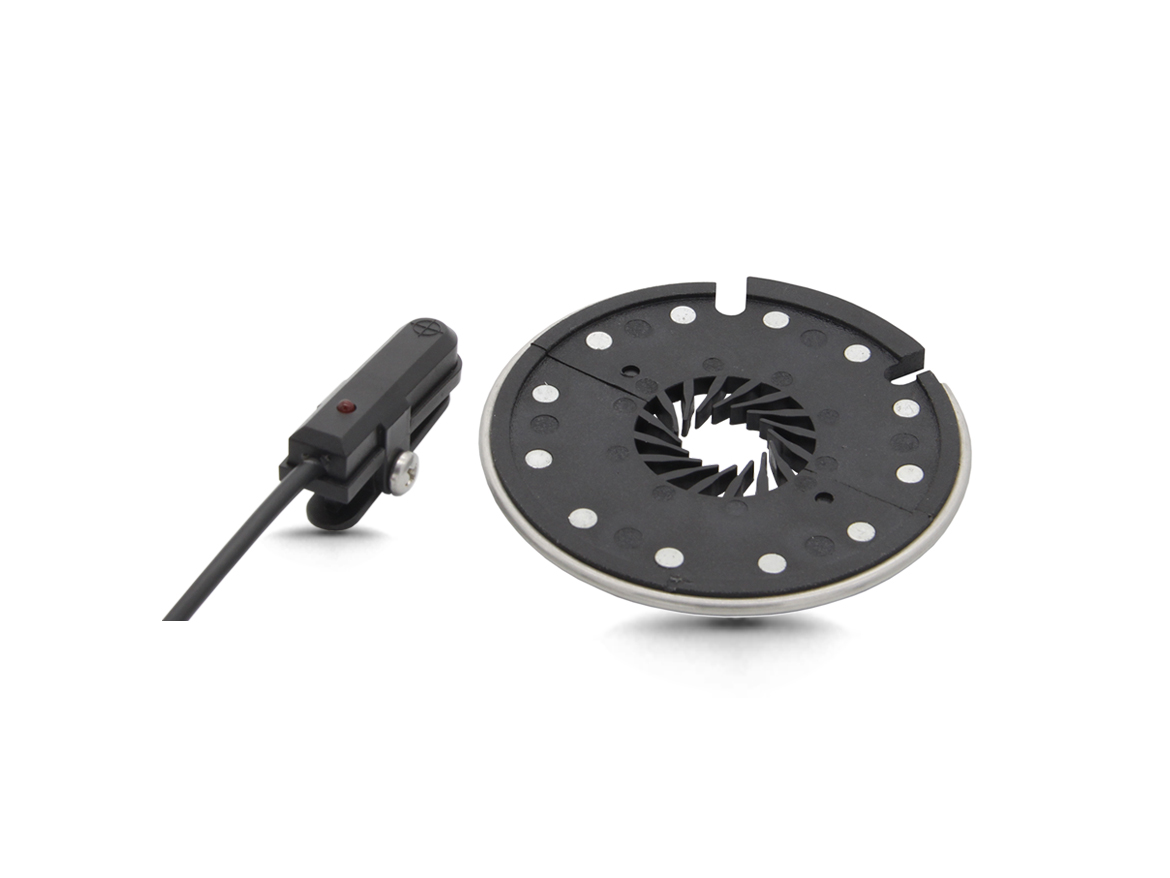

Excellent design
By using the integration structure design of dual hall detection elements and the built-in disk, which makes it an unique and novel PAS with beautiful appearance.
High sensing sensitivity
Compare to the traditional split type sensor, it can realize the concentric motion of disk and magnetic induction element, with high sensitivity and stable signal.
12 signals output
Output 12 signals with fast power-assist response speed, and it can automatically identify the positive rotation and the reverse rotation of the pedal.
Easy to install and disassemble
The installation and disassembly are convenient and quick. There are two kinds of sensors for left side and right side installation, the left KT-D12L and right KT-D12R.
| Items | Specifications | Notes |
| Product name | Power assist sensor | / |
| Brande name | Kunteng | KT |
| Model number | KT-D12R | / |
| Hall sensor | / | / |
| Number of wires | 3 Wires | / |
| Connector | SM-3A丨Waterproof | / |
| Install position | Left丨right | / |
