e Bike Throttle Control

e Bike Throttle Control

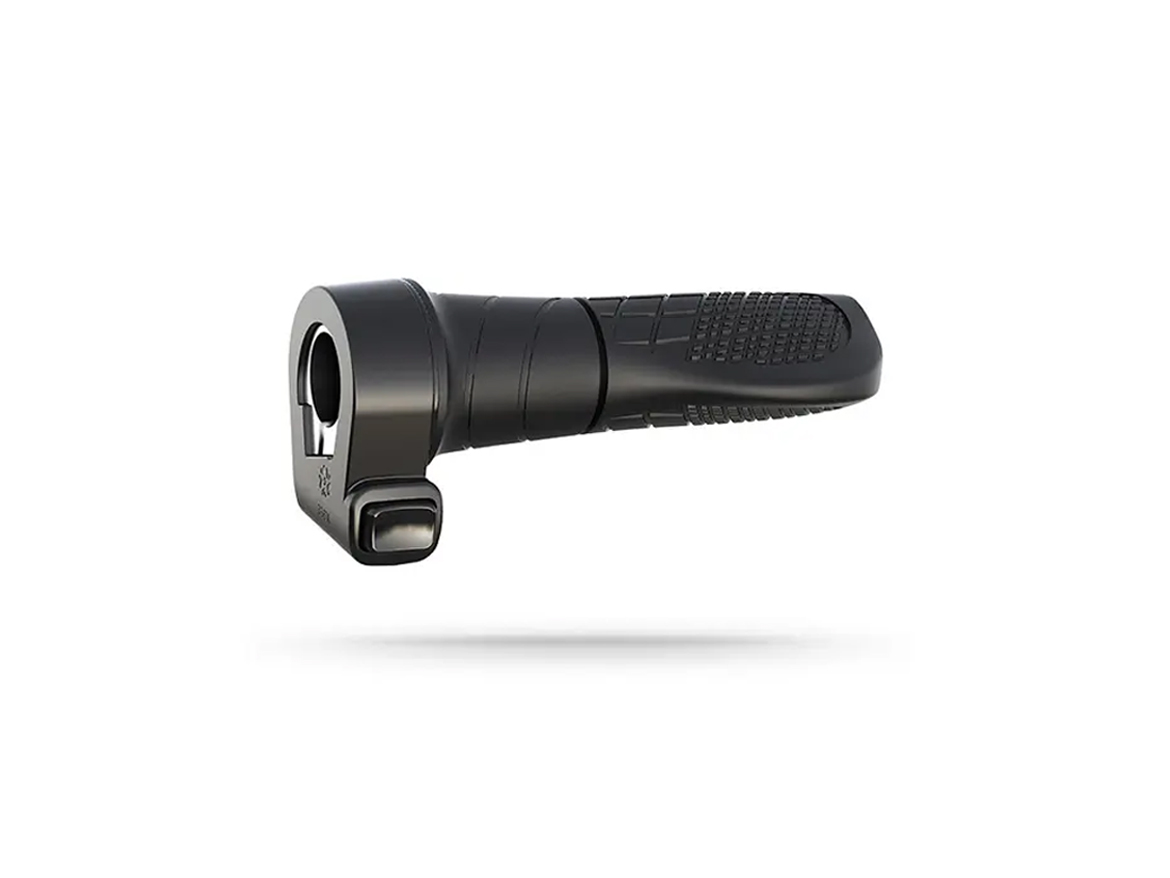

The 336X-2 twist throttle with high sensitivity, waterproof and high reliability. It it perfectly suitable to most of eBikes with our control system.

e Bike Throttle Control 336X-2+HT375

e Bike Throttle Control 336X-2+HT375

Item No. 336X-2+HT375
Dimensions 66×63×49mm
Operating voltage 5.0V
Number of wires 3
Waterproof grade IPX5
Quality approval RoHS丨REACH
Applications Electric Bikes; Electric trikes; Pedelec

Exquisite design
Impresseed with its modern design, exquisite shape and elegant style. It brings more riding pleasure.
Stable and durable
Thanks to the excellent circuit design to be sure all components works well for over 100,000 cycles.
Ergonomic operation
Ergonomic operation with large key area, high strenth plastic shell with light and comfortable feel.
Easy for installation
Aluminum handlebar clamping loop easy for installation with reliable and firm locking performance.

Items	Specifications	Notes
Operating voltage	5.0	V
Connector	SM-3Y丨Waterproof	/
Weight	95	g
Material	ABS+PC	/
Operating temperature	-25~+65	℃
Wire tension	≥130N	/
Rotation angle	0~70°	/
Spin intensity	≥9N.m	/
Durability	100,000 mating cycles	/
