e bike throttle

e bike throttle

The 300X thumb throttle with high sensitivity, waterproof and high reliability. It it perfectly suitable to most of eBikes with our control system.

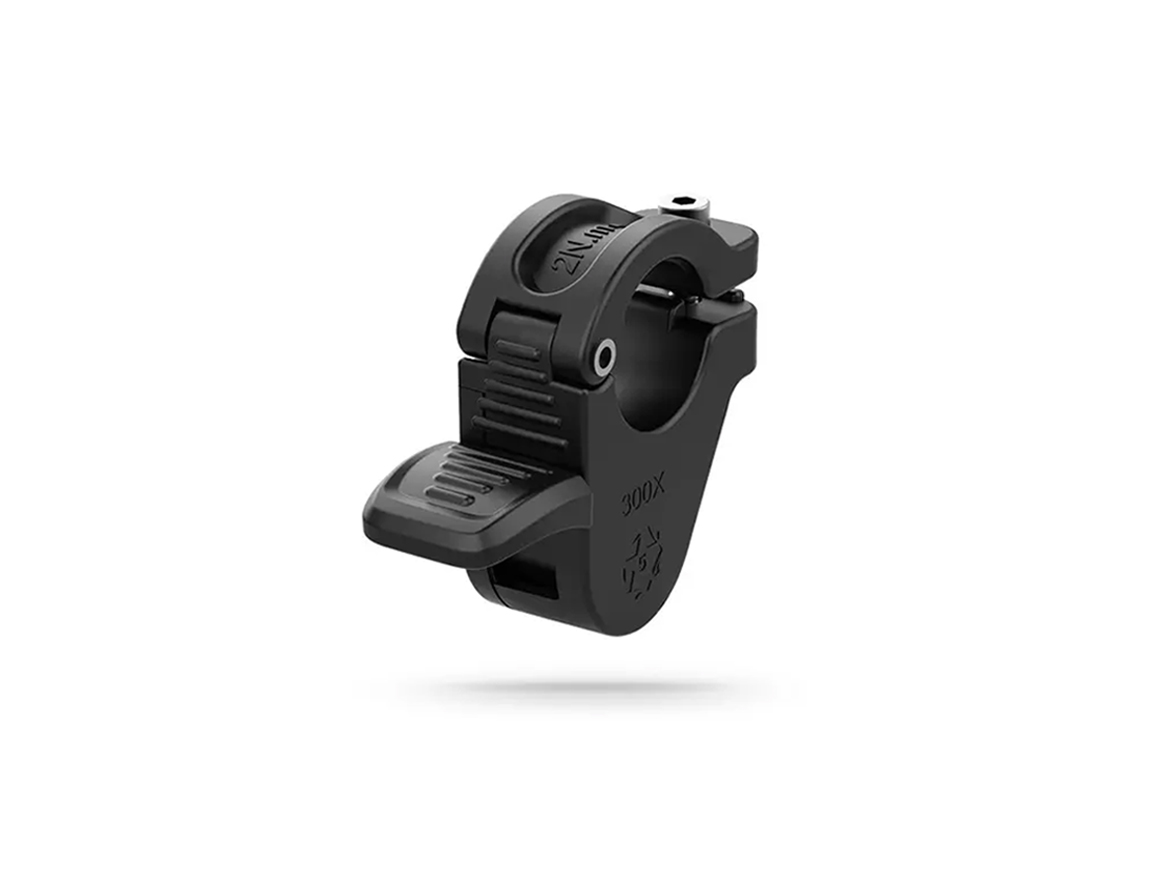

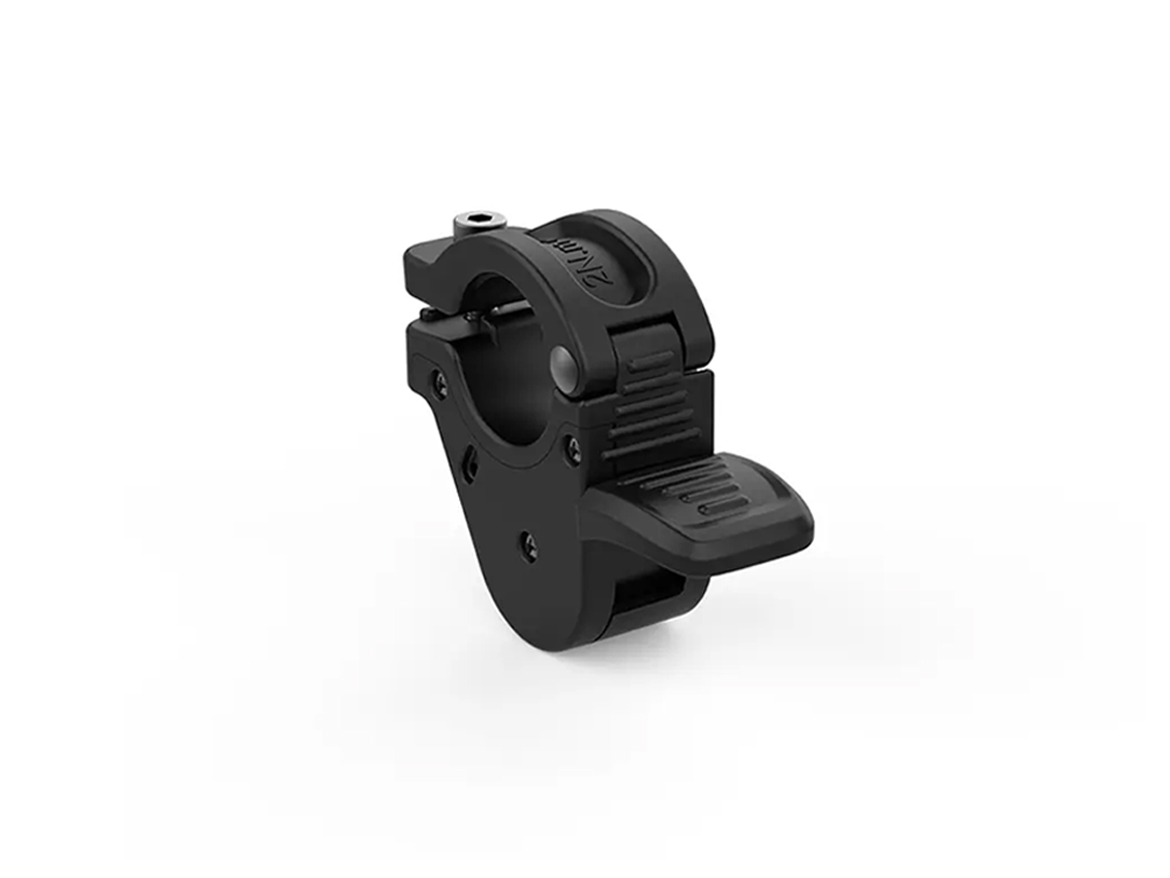

E Bike Throttle 300X Bike Thumb Throttle

E Bike Throttle 300X Bike Thumb Throttle

Item No. 300X
Dimensions 67.5×24×55mm
Operating voltage 5.0V
Number of wires 3
Waterproof grade IPX5
Quality approval RoHS丨REACH
Applications Electric Bikes; Electric scooters; Pedelec

Exquisite design
Impresseed with its modern design, exquisite shape and elegant style. It brings more riding pleasure.
Stable and durable
Thanks to the excellent circuit design to be sure all components works well for over 100,000 cycles.
Ergonomic operation
Ergonomic operation with large key area, high strenth plastic shell with light and comfortable feel.
Easy for installation
Aluminum handlebar clamping loop easy for installation with reliable and firm locking performance.

Items	Specifications	Notes
Operating voltage	5.0	V
Connector	SM-3Y丨Waterproof	/
Weight	35	g
Material	PA+GF	/
Operating temperature	-25~+65	℃
Wire tension	≥60N	/
Rotation angle	0~50°	/
Spin intensity	≥5N.m	/
Durability	100,000 mating cycles	/
