Smooth and natural
By using imitate torque control mode to help achieve a smooth start-up of the vehicle, the power-assist drive will be smooth and natural.
Effective pedal assist system
Electric power assist with fast response and always consistent with the rider's pedal action to achieve the effect of the torque boost.
Multiple protection features
With multiple protection features such as stalled, over-current, over-temperature, over-voltage, under-voltage, speed, lack of phase and so on to protect the safety of vehicle electronic control systems and traffic.
Optional and customizable

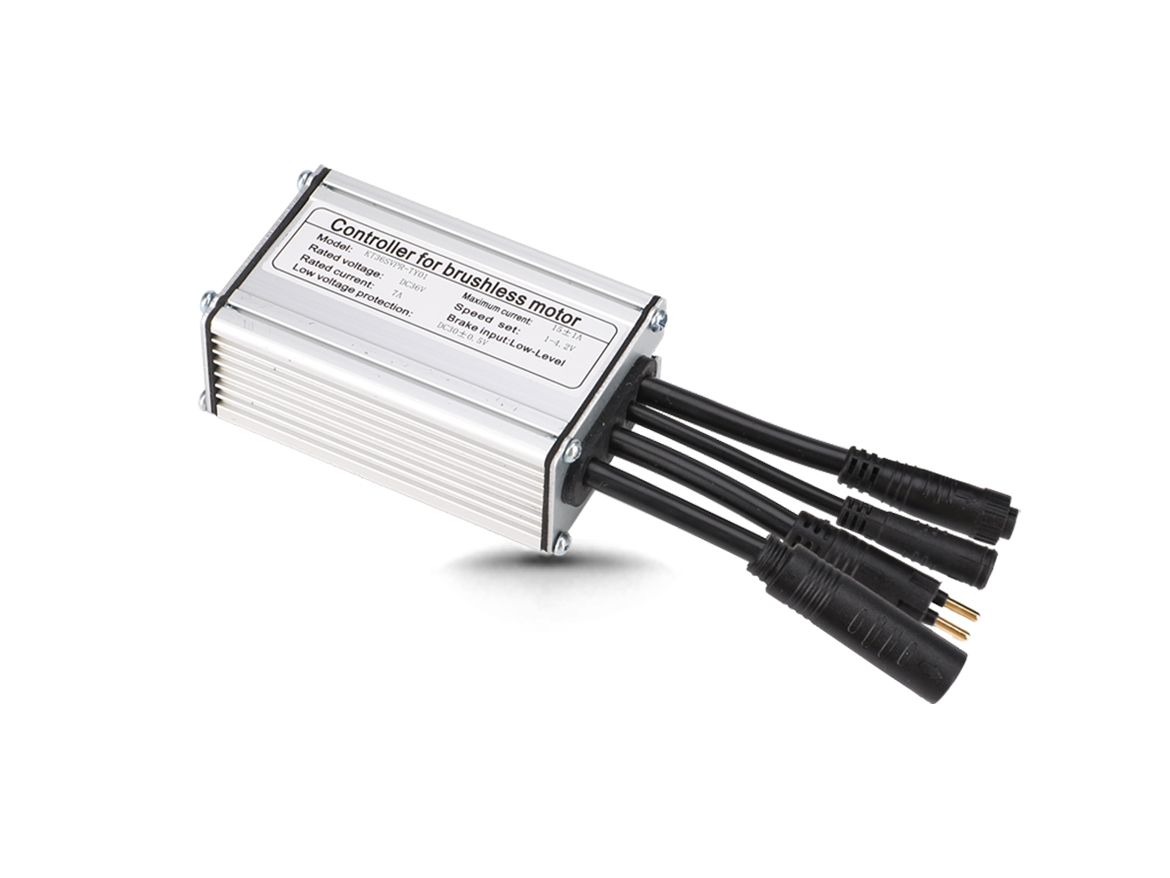

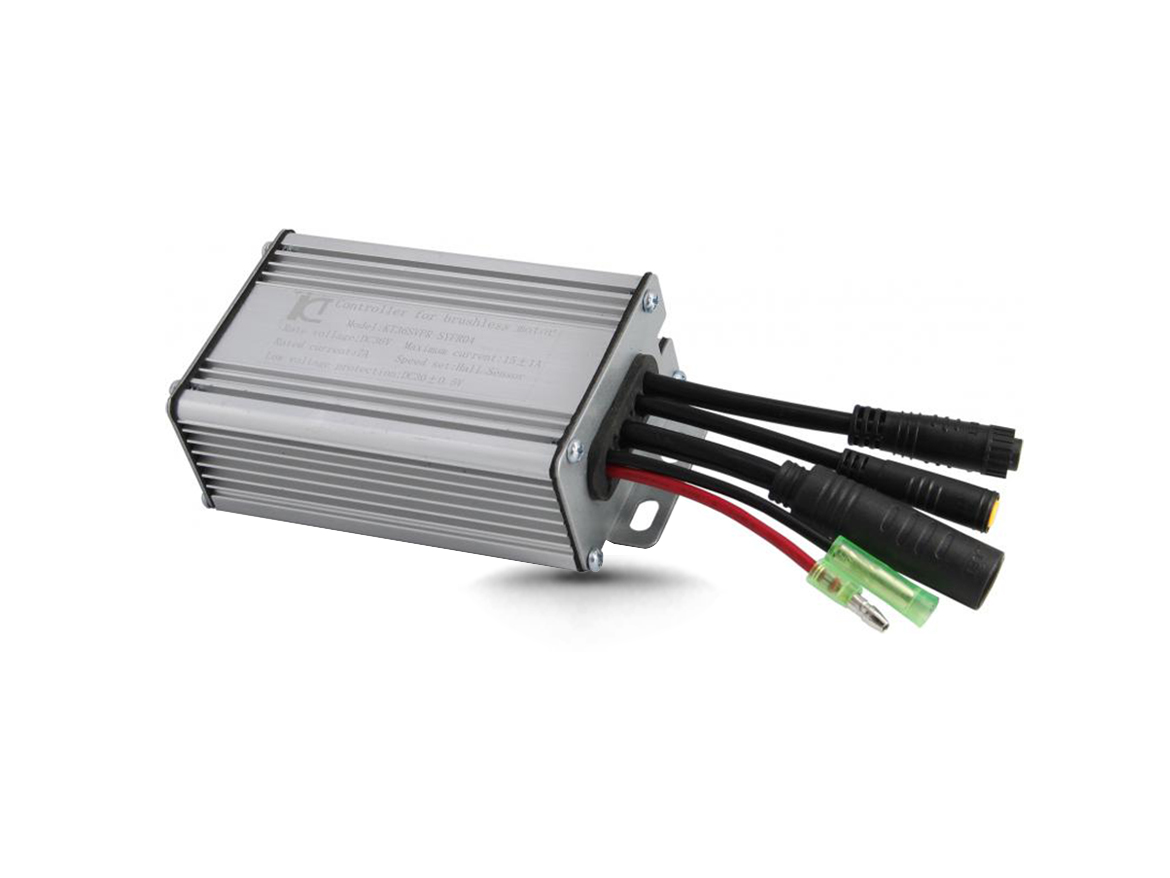

Brushless controller with or without hall, compatible to all kinds of high and low speed motors. Two options of simulated sine wave or square wave.
| Items | Specifications | Notes |
| Rated voltage | 24丨36丨48 | Volt |
| Rated operating current | 9 | A |
| Maximum operating current | 17 | A |
| Maximum power | 816 | W |
| Low voltage protection | 20丨30丨39 | Volt |
| Brake input | Low level | / |
| Speed set | 1-4.2 | Volt |
| Controller type | Brushless | / |
| Dimensions | 87.5×52×31 | mm |
| Control mode | Sine wave丨square wave | / |
| Available color | Silver丨black | / |
| Number of mosfet | 6 × Mosfets | PCS |
| Connector type | Waterproof丨Non-waterproof | / |
| Customization | Available | / |
