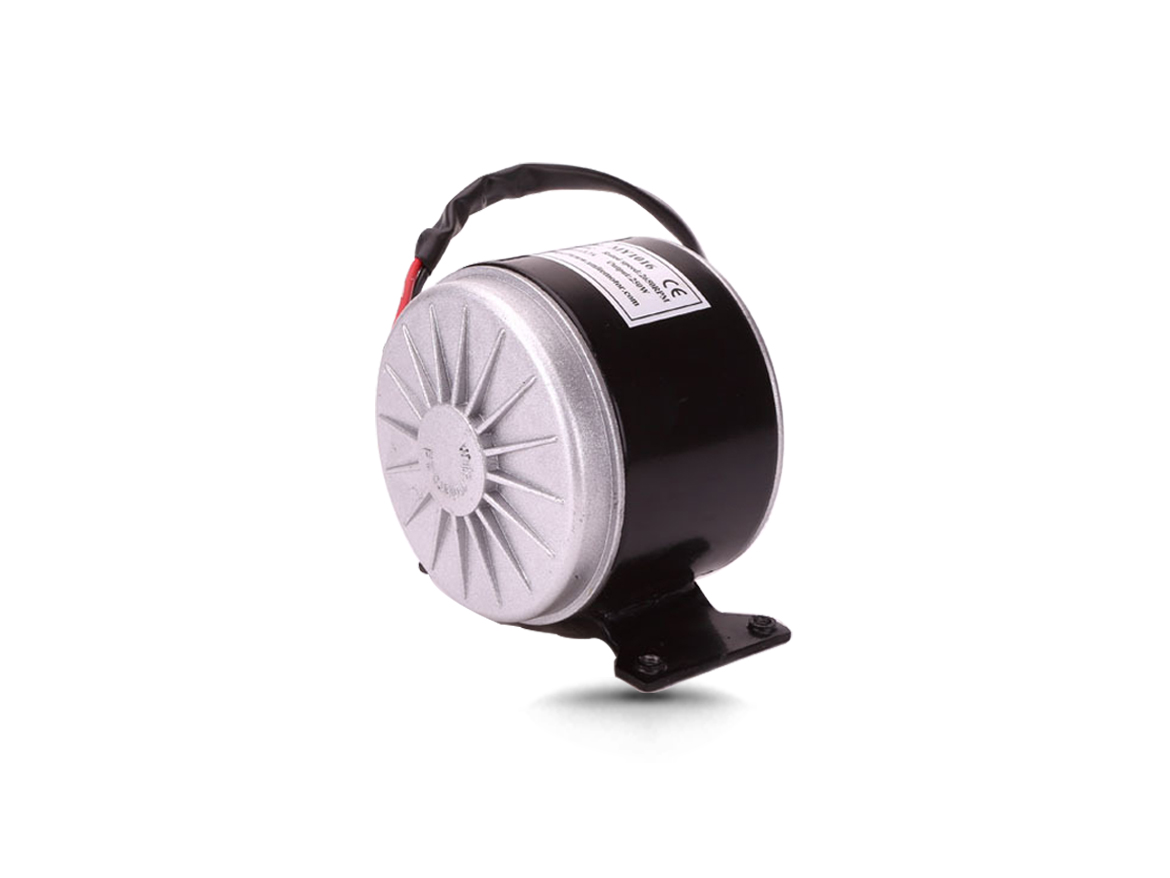

MY1016 250W 350W 24V 36V - DC Brush Gear Motor

The MY1016 brushed geared motor can transform most bikes into a modern, efficient, and clean ebike with minimal hassle and low cost.

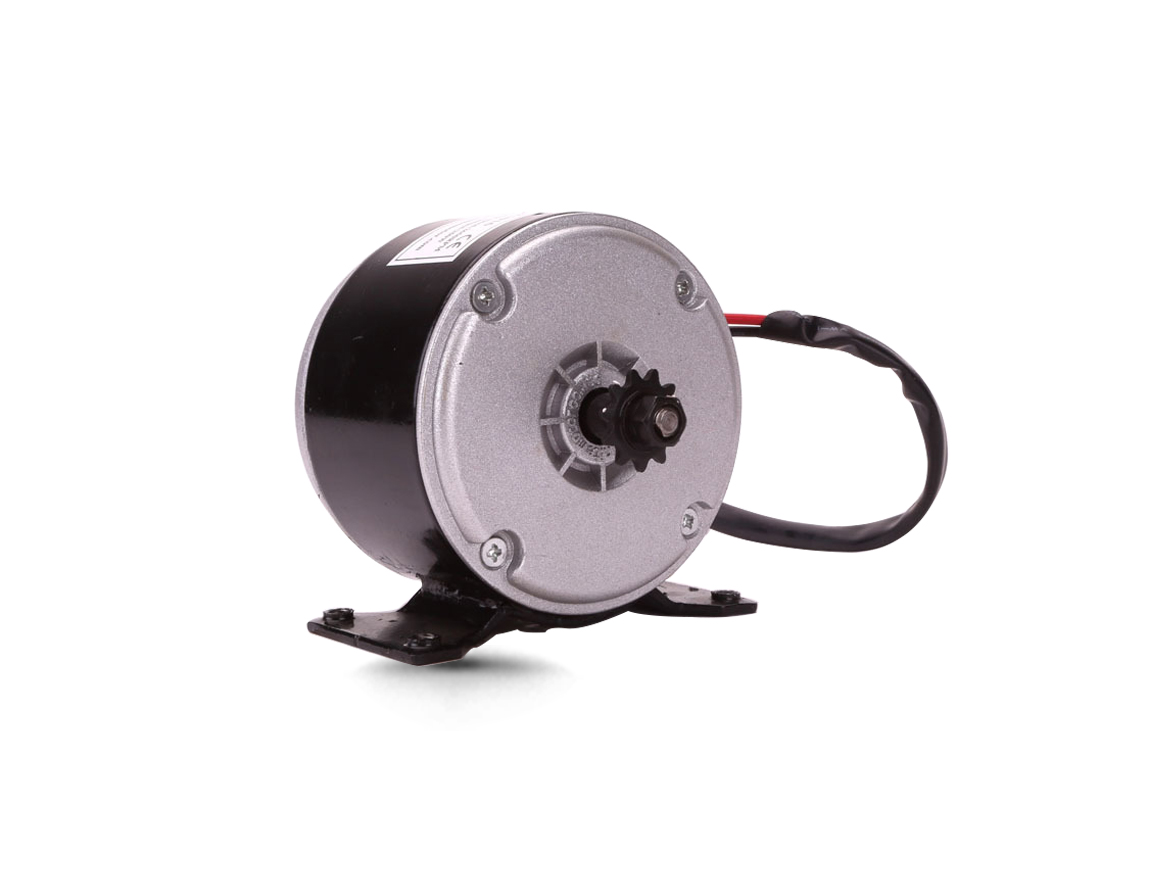

MY1016 250W 350W 24V 36V - DC Brush motor with 11 Tooth Chain Sprocket

MY1016 250W 350W 24V 36V - DC Brush motor with 11 Tooth Chain Sprocket

  • Model number MY1016
  • Rated power 350W
  • Rated voltage 24丨36V
  • Rated revolution RPM 2600
  • Weight 2.45KG
  • Rated torque 1.22 N.m
  • Applications Electric scooter, small tricycle
ItemsSpecificationsNotes
Rated power350W
Rated voltage24丨36V
Non-load current2.0丨1.5A
Rated torque1.22N.m
Rated revolution2600RPM
Rated working current≤18.7A
Efficiency≥78%/
Rated load weight120KG
Weight2.45KG
Motor diameter101mm
Motor length132mm
IP levelIP44/
