Quiet and smoothly

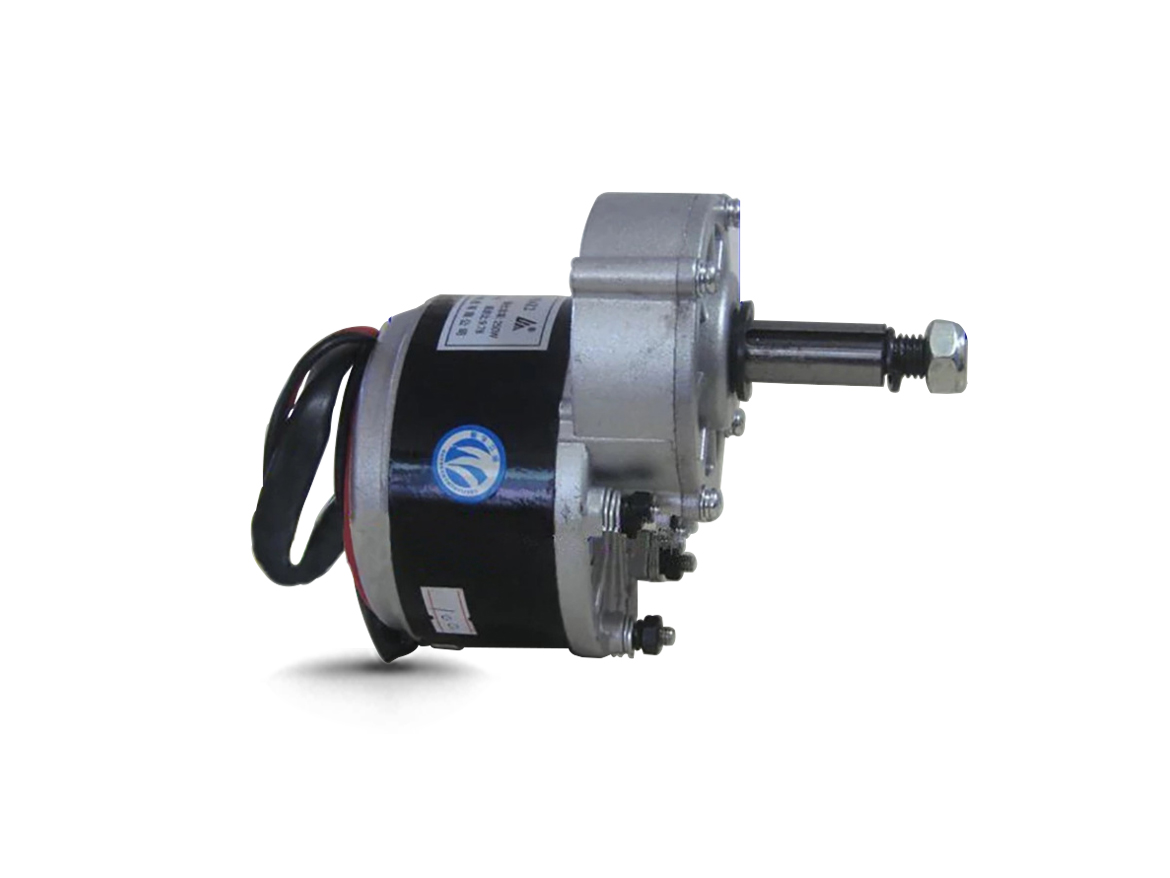

The brushed geared motors are well-suited for electric wheelchair, as they provide consistent power delivery on flat terrain. They are also quieter than mid-drive motors.
Simpler and high-efficiency
The brushed geared motor omits a large number of transmission components, making the products structure simpler, and save energy in an efficient way to achieve a longer mileage.
Economic and durable
The brushed geared motors are low-cost compare to mid-drive motors. They retain all components inside the motor casing. and require little or even no maintenance.
Compact design and functional
The brushed geared motors are integrated into the electric wheelchair, either in the front or rear wheel. This design is simple and relatively straightforward.
Items | Specifications | Notes |
Rated power | 250 | W |
Rated voltage | 24丨36 | V |
No-load current | ≤2.2丨1.6 | A |
No-load revolution | 2800 | RPM |
Rated torque | 0.99 | N.m |
Rated revolution | 2400 | RPM |
Rated working current | ≤14丨8.9 | A |
Efficiency | ≥74% 丨78% | / |
Working cycle | S2-60 | / |
Insulation class | E | / |
Gear ratio | 23.2丨37.98 | / |
Length | 170 | mm |
IP level | IP44 | / |
