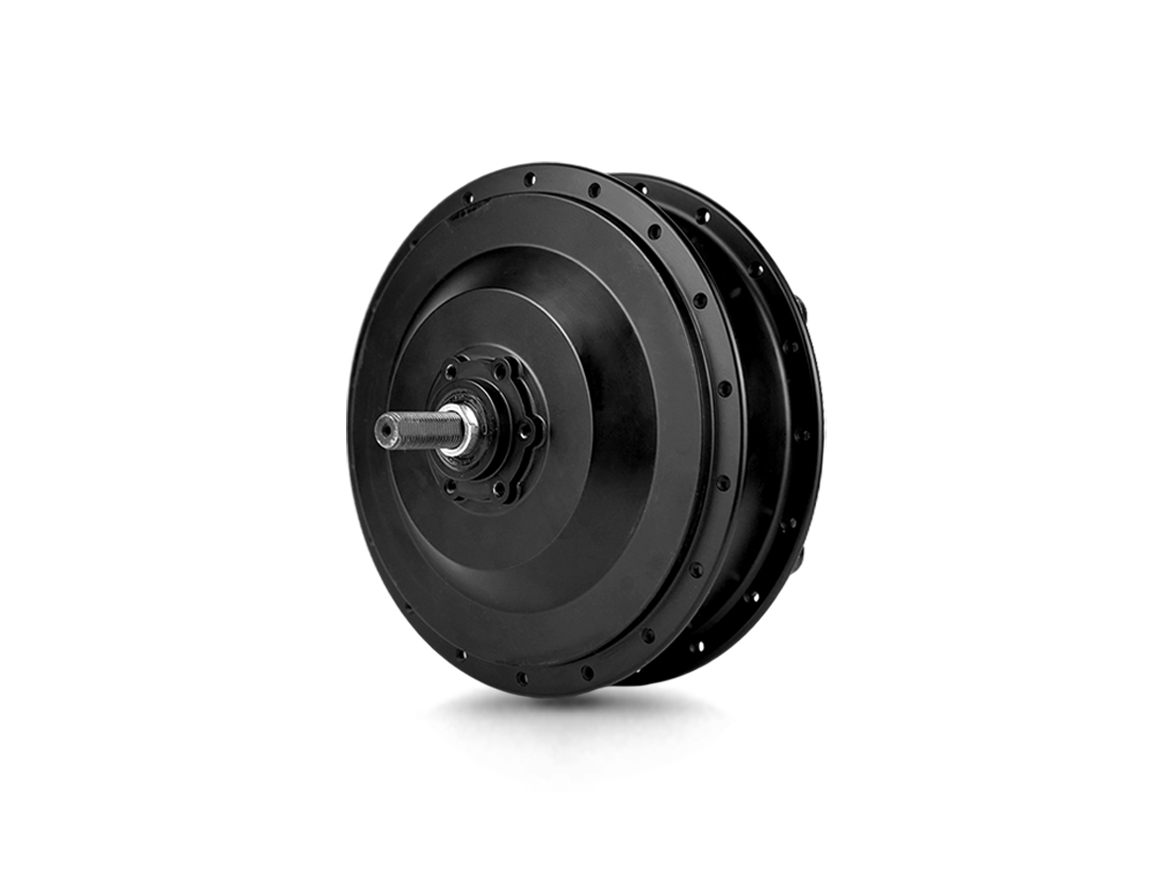

Fatbike Motor
The Fatbike motor provide superior traction and stability, making them perfect to conquer various terrains, from sandy beaches to snowy trails. The fat tyres and a powerful engine meets the requirements perfectly.

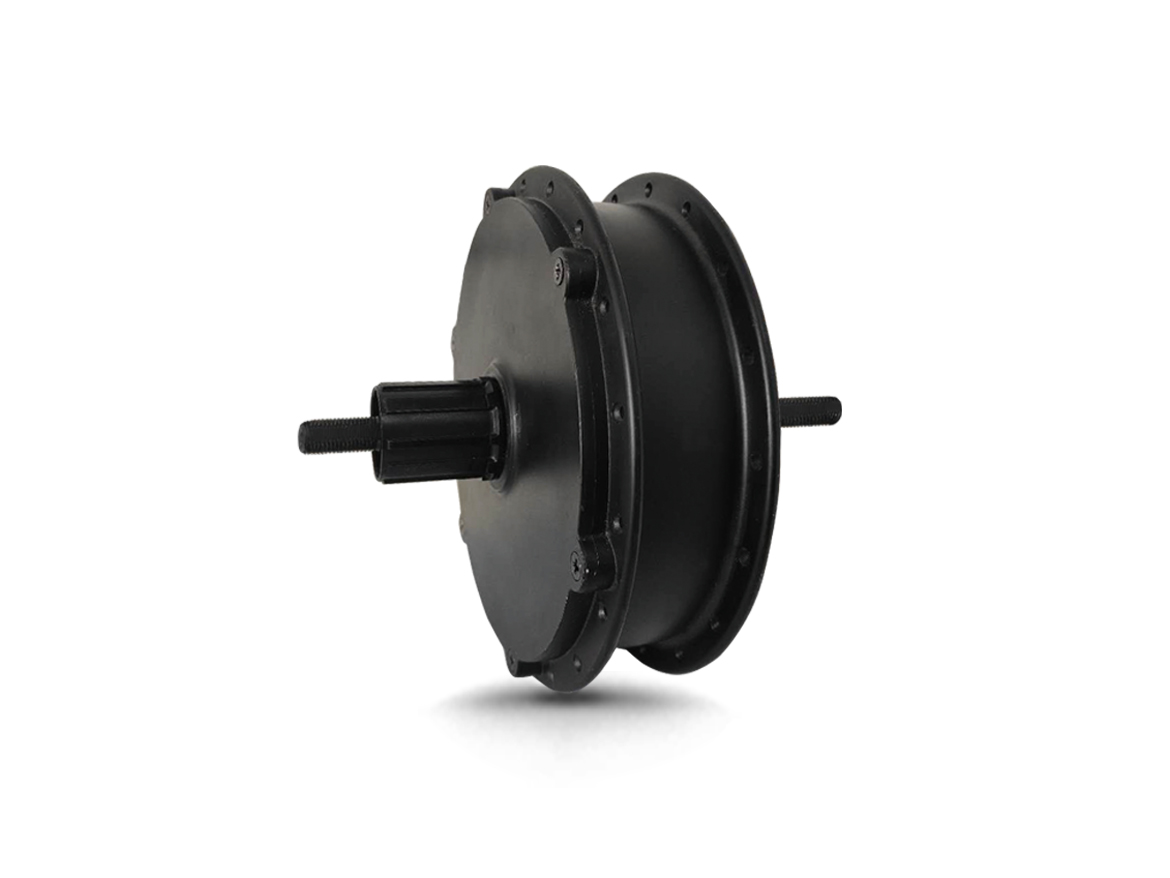

Cassette Motor
Cassettes motor are technically stronger than freewheels motors, that makes the cassette motor with longer service life than freewheels motor. And there are more choices for the gear stack with the cassette.
Efficient and durable
The Fatbike motors and cassette motors are high efficiency, thanks to the excellent design to be sure all components works well together and continue to support the durable system.
Compact design and easy installation
KinStar Fatbike motor and cassette motor are perfectly integrated into the bike's wheel hub with spokes, can transform most bikes into a modern, efficient, and clean eBike with minimal hassle.
| Items | Specifications | Notes |
| Rated power | 500 | Watt |
| Rated voltage | 36丨48丨60 | Volt |
| Efficiency | ≥80％ | / |
| Wheel size | 20-28 | inch |
| Rated speed | 50 | km/h |
| Max Torque | 60 | N.m |
| Line Way | Right | / |
| Operating temperature | -20~45 | °C |
| Color | Black丨Sliver | / |
| Cabling route | Optional | / |
| Noise grade | ＜55 | dB |
| IP level | IP65 | / |
| Salt spray test | 24/96 | / |
