Aikema AKM100SX (F1) Light-Weight E-Bike Front Motor

The AKM100SX (F1) 24V 36V 250W front drive gear hub motor can transform most bikes into a modern, efficient, and clean ebike with minimal hassle.

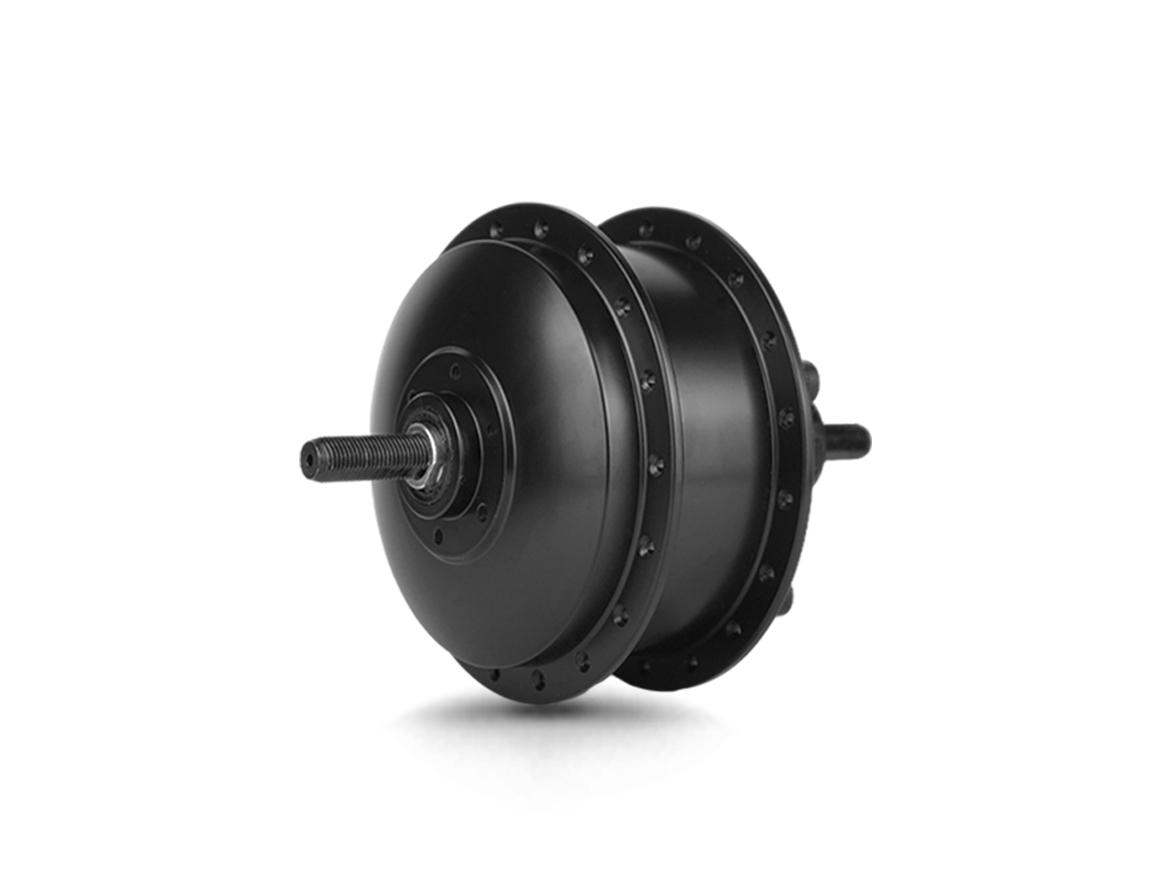

Aikema AKM100SX (F1) Light-Weight High Speed E-Bike Front Hub Geared Motor

Aikema AKM100SX (F1) Light-Weight High Speed E-Bike Front Hub Geared Motor

  • Model number  AKM100SX (F1)
  • Rated power  250W
  • Rated voltage      24V/36V

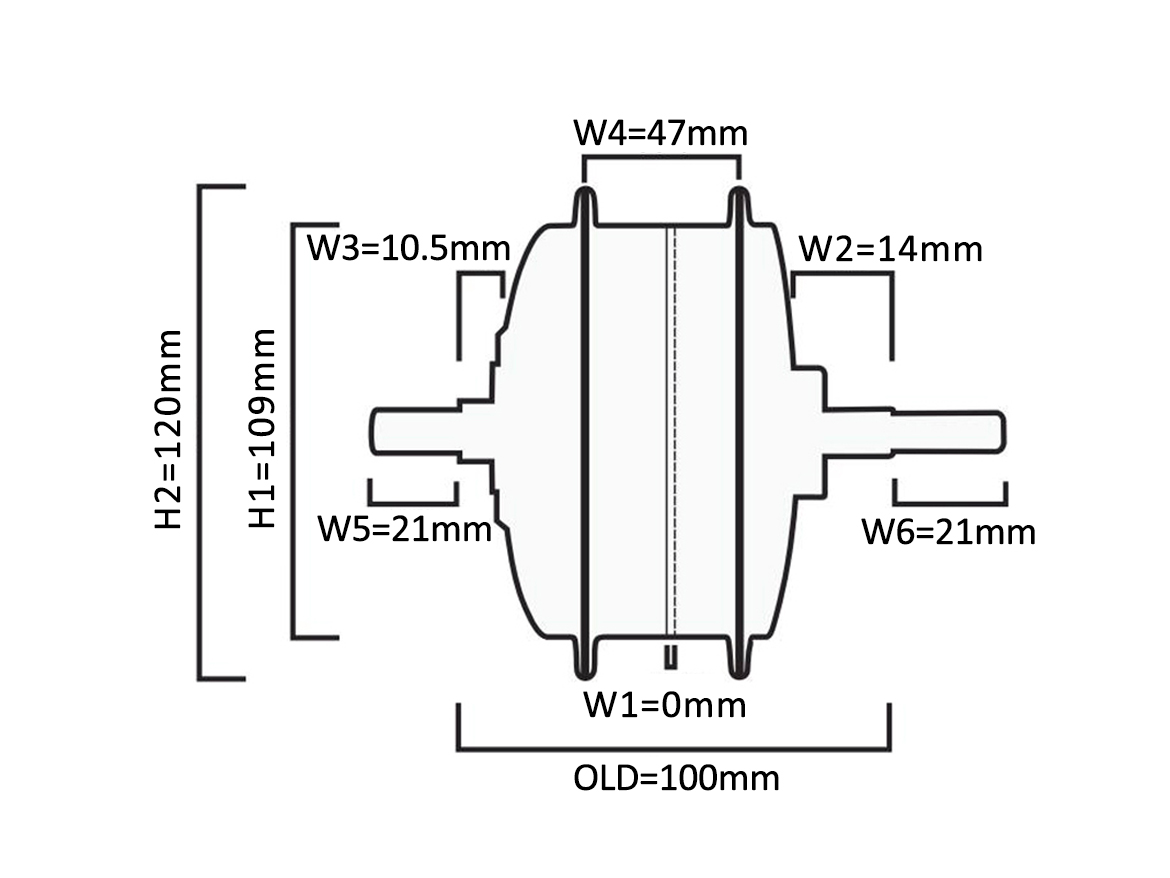

  • Dropout  100mm
  • Weight  1.9±0.2KG
  • Certificates  CE/RoHS/EN 15194
  • Applications  E-City丨 E-Tour
ItemsSpecificationsNotes
Rated power250Watt
Rated voltage24/36Volt
Weight1.9±0.2KG
Wheel size20-28Inch
Max Torque45N.m
Rated speed25km/h
Dropout 100mm
Operating temperature-20~45°C
Efficiency≥80%/
ColorBlack/Sliver/
Cabling RouteOptional/
Line Way Left/Right/
Noise Grade<55dB
IP levelIP65/
Salt spray test24/96/
CertificatesCE/RoHS/EN 15194/
