Quiet and smoothly
Hub motors are well-suited for urban and city bikes, as they provide consistent power delivery on flat terrain. They are also quieter than mid-drive motors.
Simpler and high-efficiency
The hub motor omits a large number of transmission components, making the eBike structure simpler, and save energy in an efficient way to achieve a longer mileage.
Economic and durable
Hub motors are low-cost compare to mid-drive motors. They retain all components inside the motor casing. and require little or even no maintenance.
Compact design and functional
Hub drive motors are integrated into the bike's wheel hub with spokes, either in the front or rear wheel. This design is simple and relatively straightforward.
| Items | Specifications | Notes |
| Rated power | 250 | Watt |
| Rated voltage | 24/36/48 | Volt |
| Weight | 1.7±0.2 | KG |
| Wheel size | 12-28 | Inch |
| Max Torque | 35 | N.m |
| Rated speed | 25 | km/h |

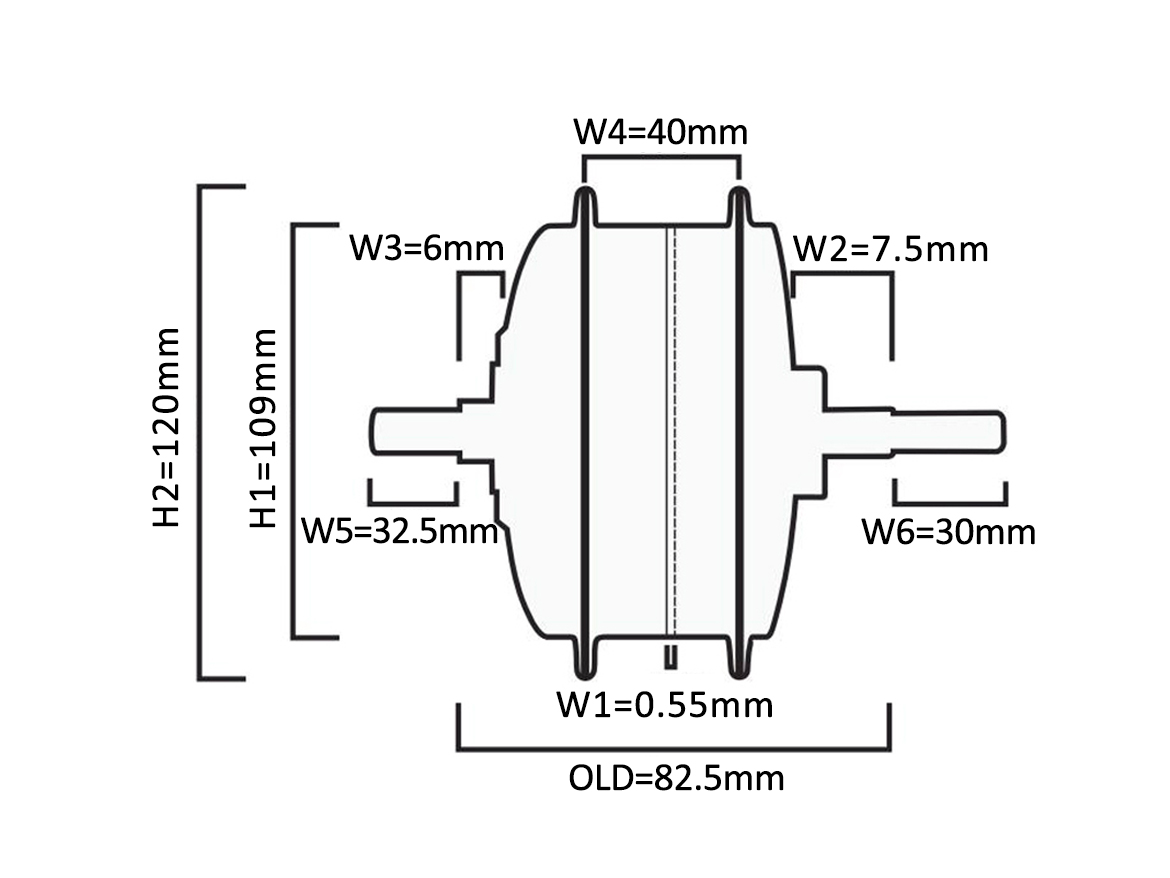

| Dropout | 82.5 | mm |
| Operating temperature | -20~45 | °C |
| Efficiency | ≥80% | / |
| Color | Black/Sliver | / |
| Cabling Route | Optional | / |
| Line Way | left/right | / |
| Noise Grade | ＜55 | dB |
| IP level | IP65 | / |
| Salt spray test | 24/96 | / |
| Certificates | CE/RoHS/EN 15194 | / |
