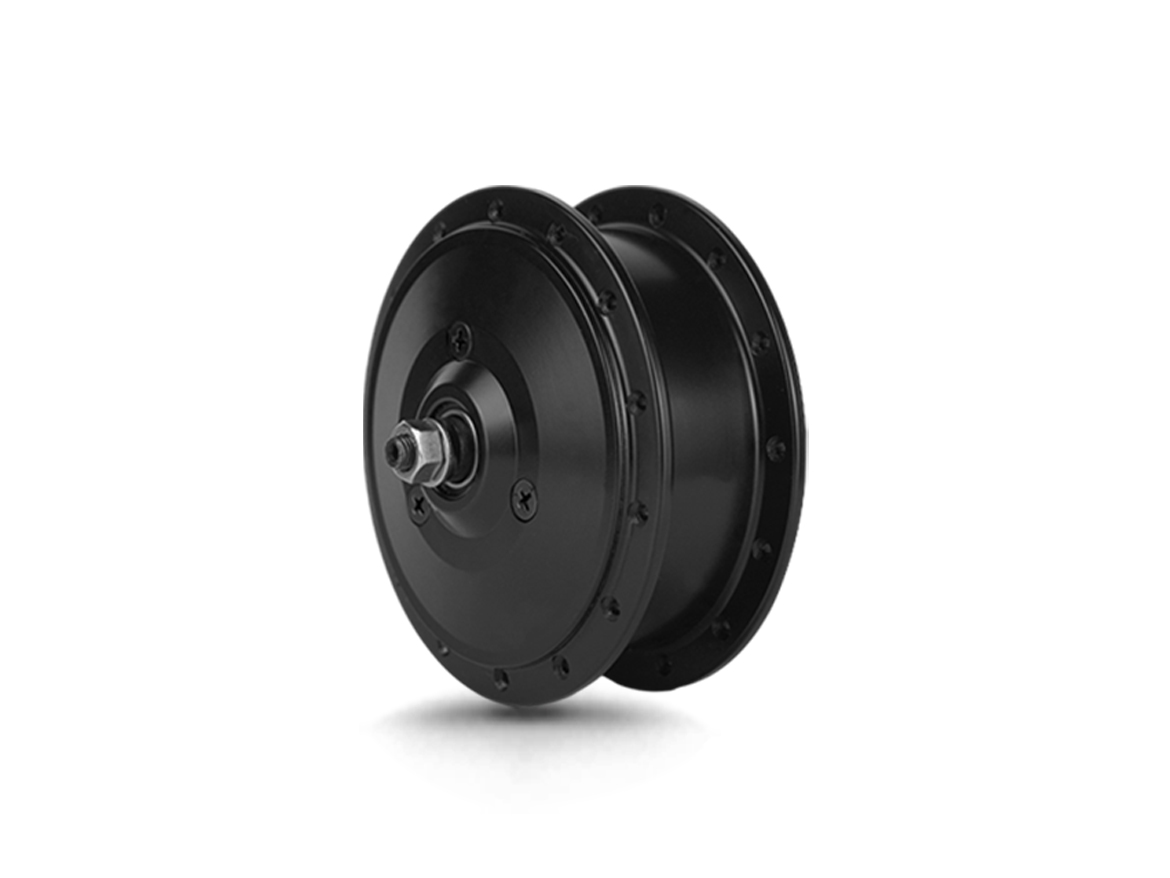

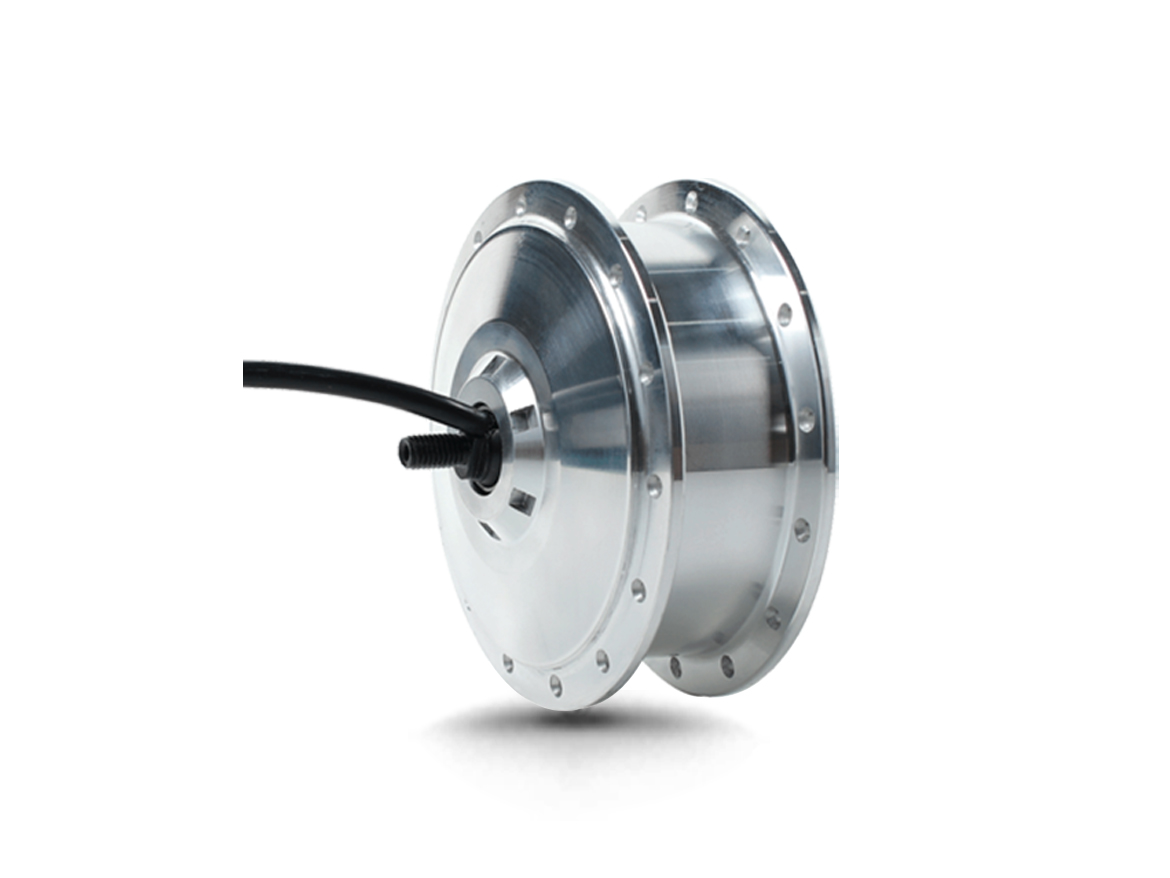

AKM85SX Disc Brake Geared Hub Motor Front Drive

The AKM85SX (F1) 36V 250W front drive gear hub motor can transform most bikes into a modern, efficient, and clean ebike with minimal hassle.

AKM85SX Disc Brake Geared Hub Motor Front Drive Inner Rotor Motor

AKM85SX Disc Brake Geared Hub Motor Front Drive Inner Rotor Motor

  • Model number  AKM85SX(F1)
  • Rated power  250W
  • Rated voltage      24V/36V
  • Dropout  75mm
  • Weight  1.6±0.2KG
  • Certificates  CE/RoHS/EN 15194
  • Applications  E-City丨 E-Tour
ItemsSpecificationsNotes
Rated power250Watt
Rated voltage24/36Volt
Weight1.6±0.2KG
Wheel size16-20Inch
Max Torque30N.m
Rated speed25km/h
Dropout 75mm
Operating temperature-20~45°C
Efficiency≥80%/
ColorBlack/Sliver/
Cabling RouteOptional/
Line Way left/
Noise Grade<55dB
IP levelIP65/
Salt spray test24/96/
CertificatesCE/RoHS/EN 15194/
