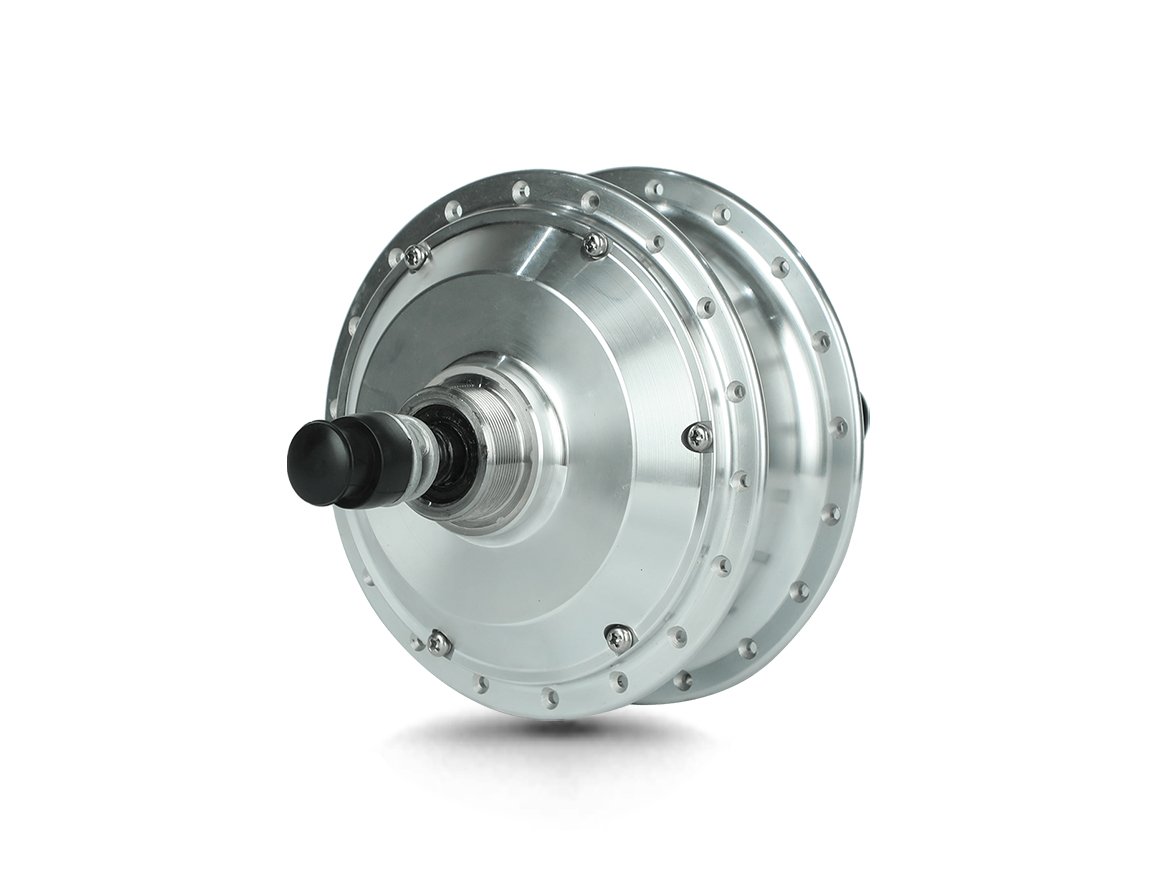

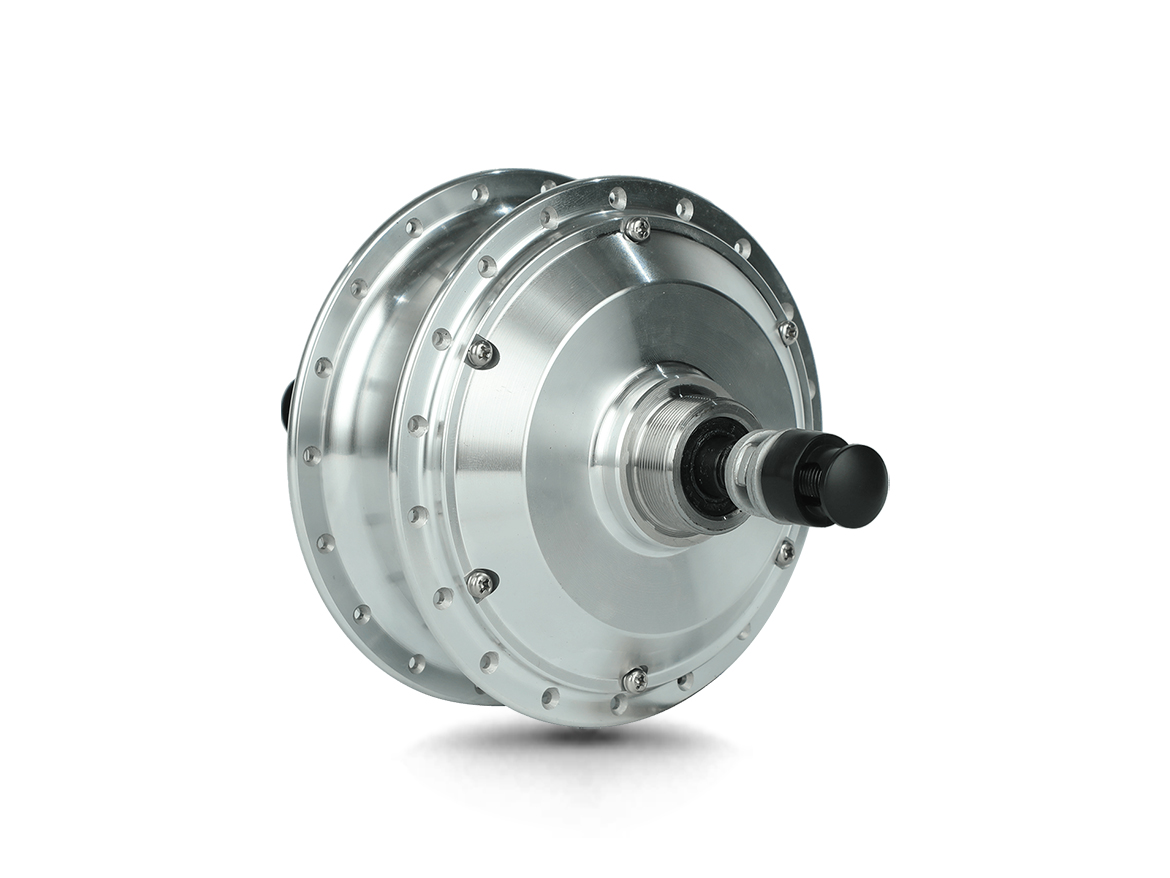

MXUS GDR-05H 24V 36V 48V 250W Brushless Hub Motor

The MXUS GDR-05H rear brushless eBike motor can transform most bikes into a modern, efficient, and clean ebike with minimal hassle.

MXUS GDR-05H 24V 36V 48V 200W 250W Brushless Geared Hub Motor

MXUS GDR-05H 24V 36V 48V 200W 250W Brushless Geared Hub Motor

  • Model number  GDR-05H
  • Rated power  200-250 W
  • Rated voltage      24V/36V/48V
  • Dropout  125/130/135mm
  • Weight  2.8±0.2KG
  • Certificates  CE/RoHS
  • Applications  E-City丨 E-Tour
ItemsSpecificationsNotes
Rated power200-250Watt
Rated voltage24/36/48Volt
Weight2.8±0.2KG
Wheel size16-28Inch
ConstructionGear/
Reduction ratio1:4.4

Rated speed25km/h
Magnet poles102P
Dropout125/130/135mm
Operating temperature-20~45°C
Efficiency≥78%/
Brake typeDisc brake/
ColorBlack/Sliver/
Cabling routeShaft center right / Shaft side left/
Noise Grade≤55dB
IP levelIP54/
Salt spray test24/96/
CertificatesCE/RoHS/
