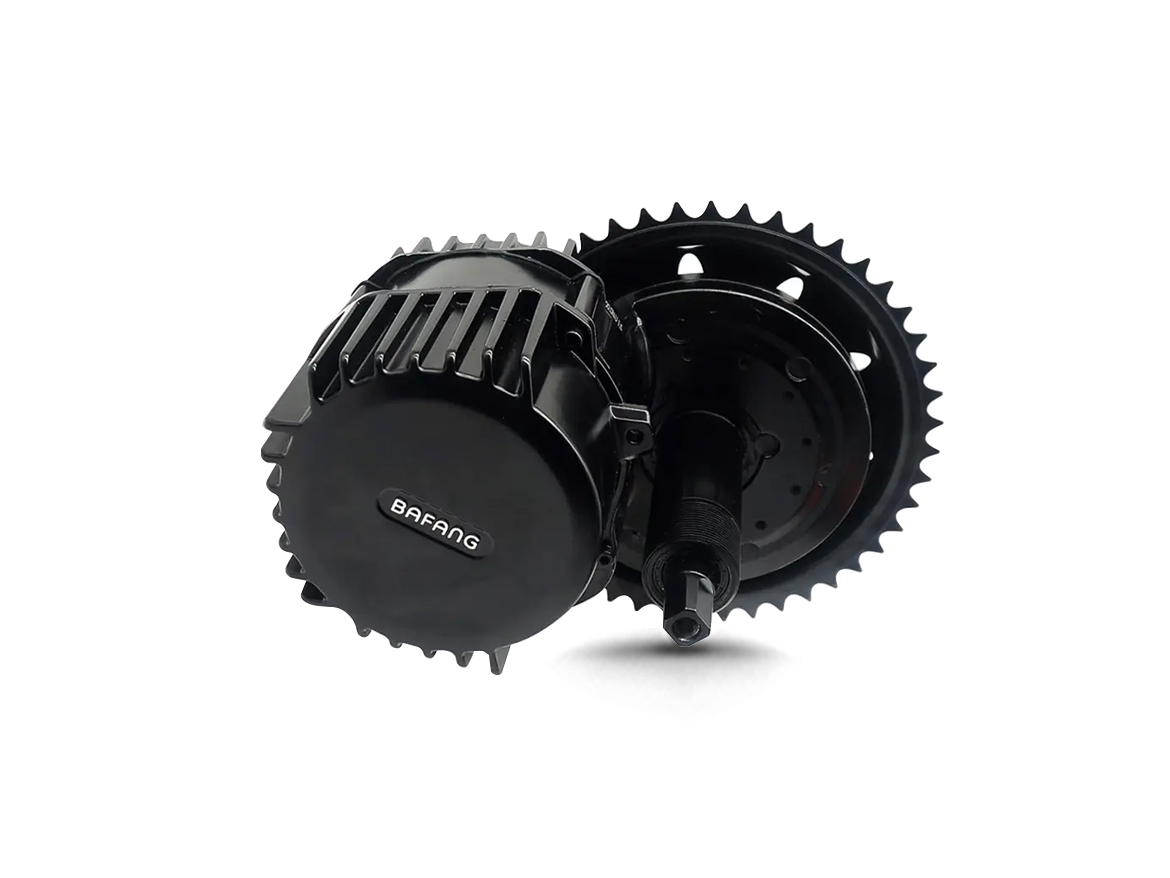

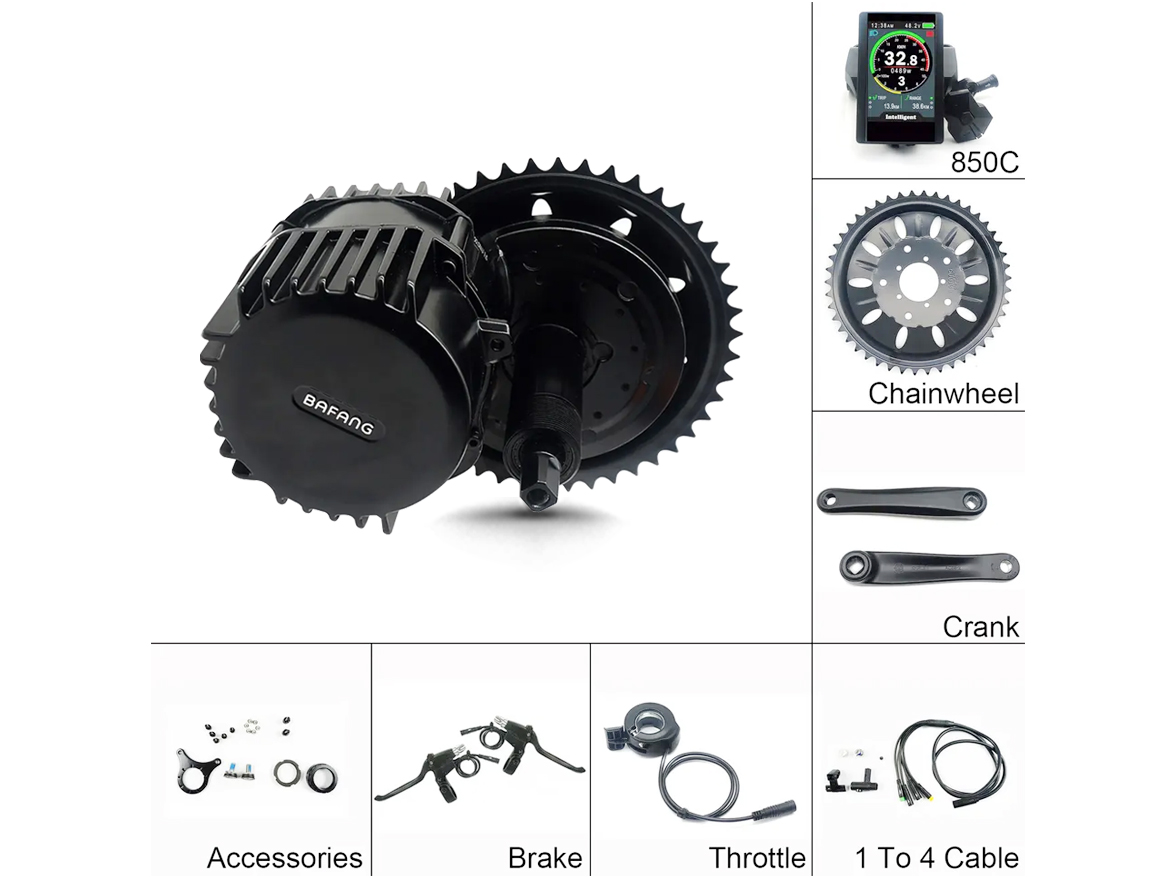

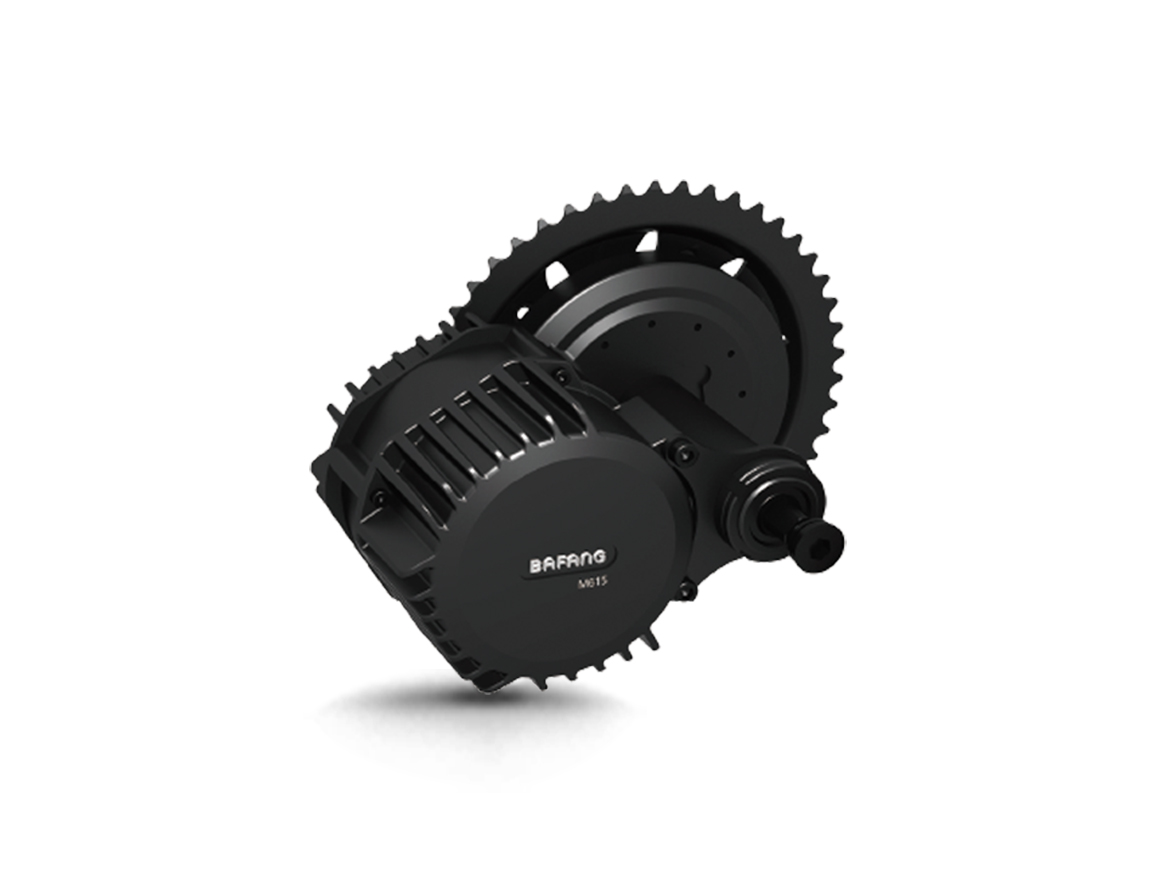

BAFANG MM G320.750 Mid-Drive the Ultra drive Motor

Bafang M615 (MM G320.750.C), rated power 750W. Rated voltage DC 48V. Which can transform most bikes into a modern and efficient ebike with minimal hassle.

BAFANG MM G320.750 Mid-Drive the Ultra drive Motor 48V 750W

BAFANG MM G320.750 Mid-Drive the Ultra drive Motor 48V 750W

  • Model number M615 (MM G320.1000.C)
  • Rated power 750丨1000W
  • Rated voltage 48V
  • Dimensions 215×123×175mm
  • Weight 5.6KG
  • Certificates CE丨RoHS丨EN 14764
  • Applications E-Tour丨E-MTB丨E-Cargo
ItemsSpecificationsNotes
Rated power750丨1000Watt
Rated voltage48Volt
Dimensions215×123×175mm
Efficiency≥80% /
Wheel size20-29Inch
Maximum torque160N.m
Rated speed25丨32丨45km/h
Pedal sensorCadence/
Shaft standardJIS/
Noise Grade<50dB
E-BrakeOptional/
ColorBlack/
Light Drive Capacity6/3 (Max)
Vdc/W
IP levelIP X5
/
Salt spray test96/
CertificatesCE丨RoHS丨EN 14764/
